Wirelessly powered light bulb system Design

Wirelessly powered light bulb system Design

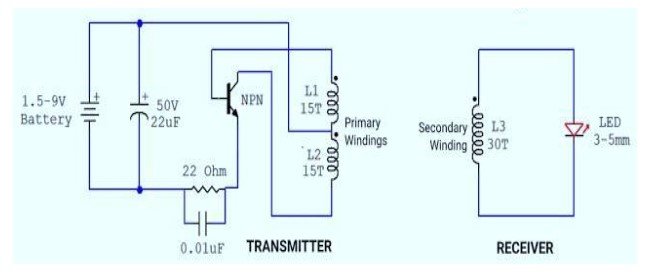

A schematic diagram (Circuit diagram)

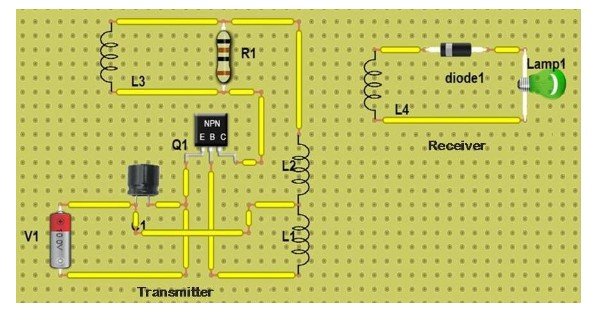

Wireless Transmission Circuit Diagram
  • NPN Transistor: We used a CFL bulb circuit BLD123D transistor.
  • Any transistor NPN such as 2n2222, bc547, bd139. You might use any NPN such as 2n2221, bc547, bd139 etc.
  • Whatsapp Resistor: In cases of heat overloads or excess use, a 22 Ohm resistor can be used to shield the transistor from reprocessing. This resistor gets very hot so that you can use a 1 watt or higher resistor.
  • Capacitors: Nonpolar 0.01uF Noise cancellation capacitor and 22uF 50V Capacitors used for dc input voltage smoothing.
  • Windings: The main windings in the transmitter circuit are 15-0-15 turns of 4 cm in diameter, using copper wire with insulated 0.25 mm.
  • LED: The LED demonstrates only the circuit in operation with this circuit. We used red LEDs in the schematic of 2mm (you could use any LED).
  • Battery: Use 1.5-9, 10V, ≥1.5 Amp Battery.
  • Order Now

    Wirelessly Powered Light Bulb System Design

    Wirelessly Powered Light Bulb System Design

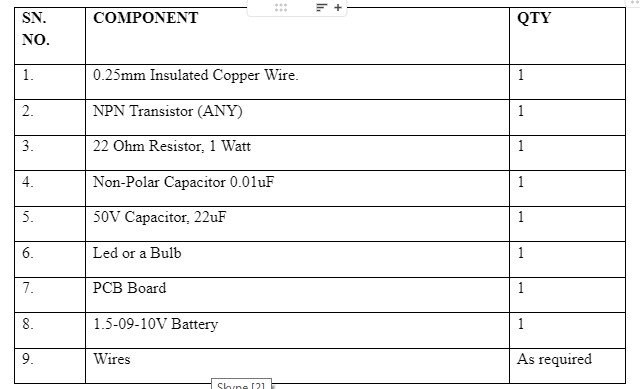

    Hardware components
